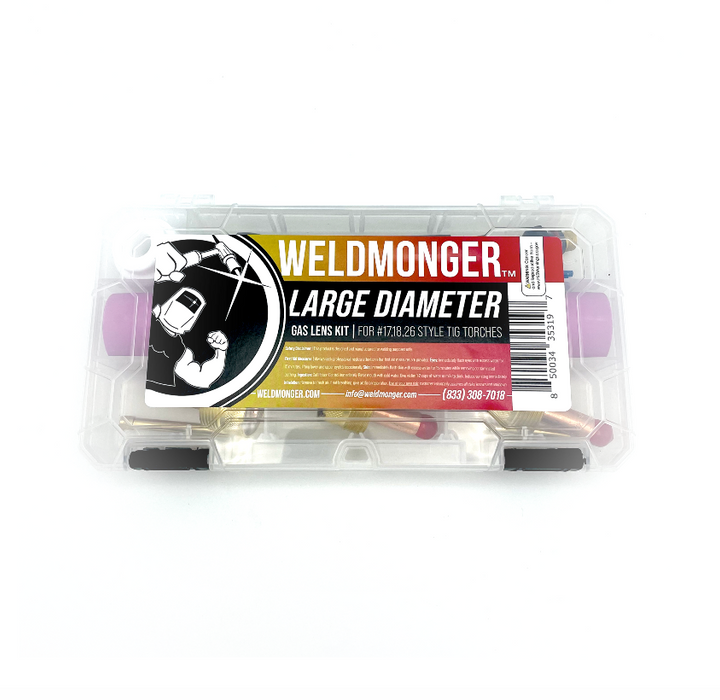

CK Worldwide / Weldmonger® Large Diameter Gas Lens Kit (for 17,18,26 Style Torches)

Now comes with Tungsten, and is setup for 3/32, 1/8, or 5/32!

Works with 17, 18, 26, CS300, CS410 and CK 3 Series TIG torches.

This Large Diameter Gas Lens kit is especially popular with pipe welders and works great for:

• Walking the cup on pipe
• Socket welds both Stainless and Carbon
• Stainless Sanitary tubing for Food and Beverage
• Aluminum tread plate

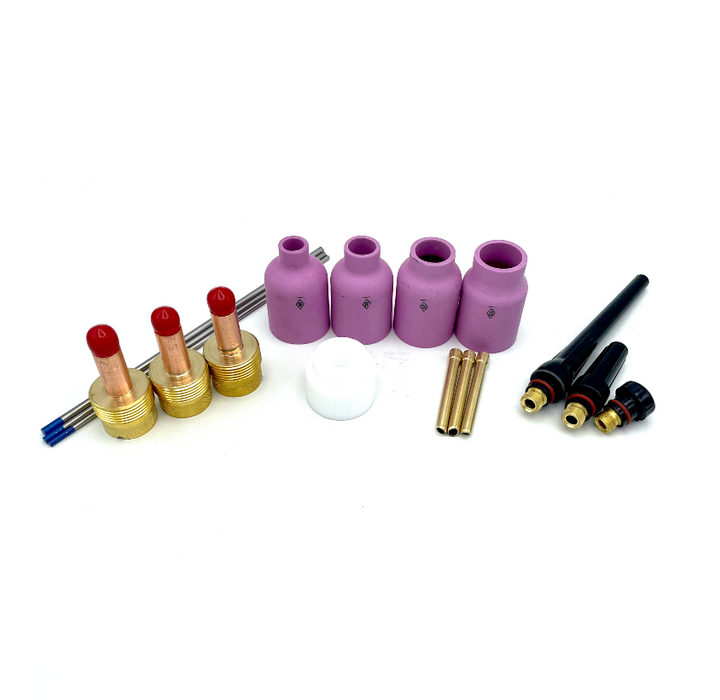

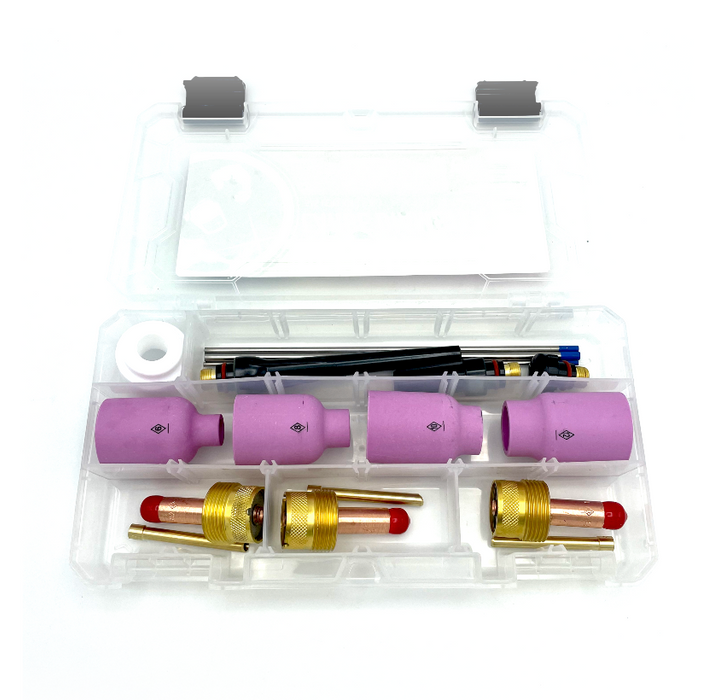

Weld Stainless Steel and Nickel Alloys like Inconel and Hastelloy with less Discoloration and less oxidation in the puddle. Kit Includes:

• #12 - 3/4" (19.0mm) Orifice Gas Lens Alumina Nozzle (#12 cup allows for 3/4” stickout and sometimes even more while still maintaining excellent gas coverage)
• #10 - 5/8" (16.0mm) Orifice Gas Lens Alumina Nozzle
• #8 - 1/2" (12.7mm) Orifice Gas Lens Alumina Nozzle
• #6 - 3/8" (9.6mm) Orifice Gas Lens Alumina Nozzle
• 3/32" (2.4mm), 1/8"(3.2mm), and 5/32"(4.0mm) Large Diameter Gas Lens Collet Bodies
• 3/32" (2.4mm), 1/8"(3.2mm), and 5/32"(4.0mm) Wedge Collets ( wedge collets won’t twist when they get hot)
• One Large Diameter Teflon Nozzle Gasket
• 1 each Small, Medium, and Large CK Back Caps
• 1 each 3/32", 1/8", 5/32", size tungsten

If you have been struggling with gray oxidized welds from inadequate argon coverage, then this Gas lens kit can help you take your TIG welding game to the next level.

______________________________________________________________________

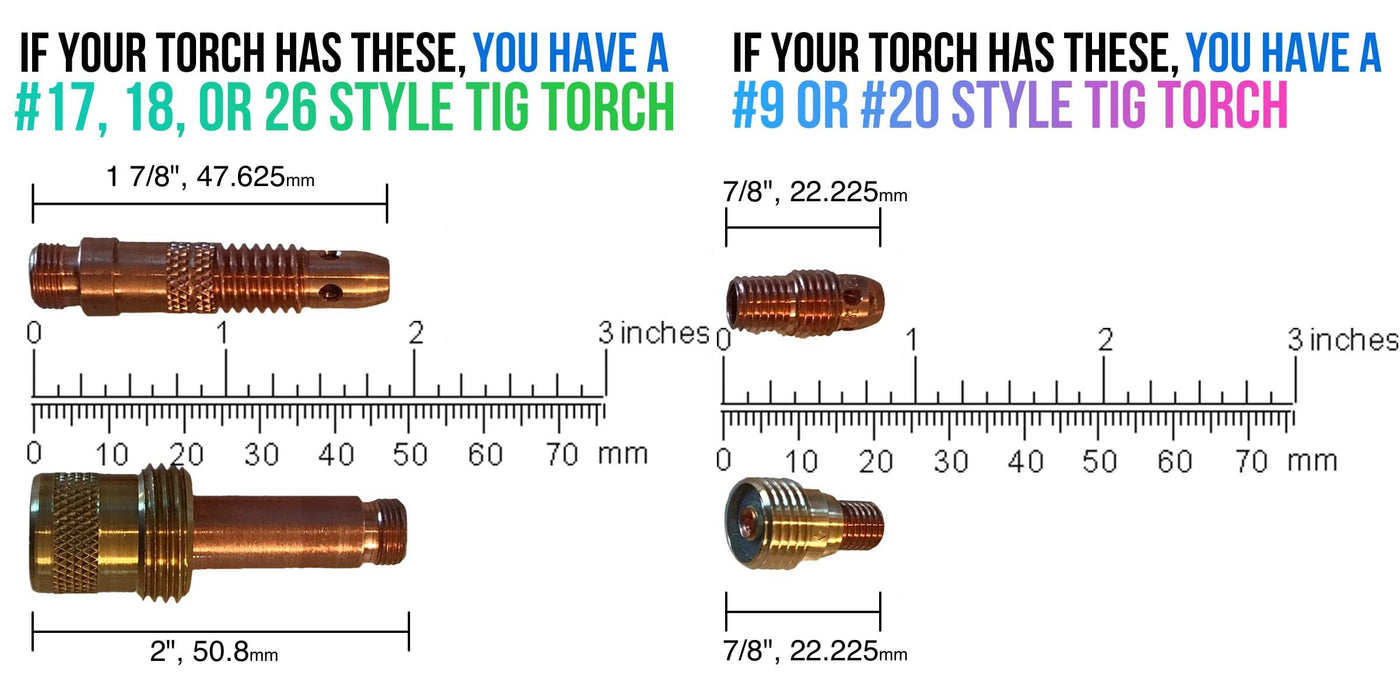

What Series/Number is my Torch?  Knowing the style of your torch takes the guess work out of finding consumables and replacement parts.

2 Series(#9/#20):  torches includes 9, 20, 100, 110, 130, 200, 230FL2L, CKM230, CWH230, WCM230 torches and other popular torches of Weldcraft, Lincoln, WeldTec and Profax with similar models.

3 Series(#17/#18/#26):  torches include 17, 18, 26, 150, 210, 300, 510, Trimline, FL3L, CKM350, CWHTL300, CWH350, CWM350 and other popular torches of Weldcraft, Lincoln, WeldTec and Profax with similar models.

If you need any more help finding out what style torch you have, give us a call. (833)-308-7018
