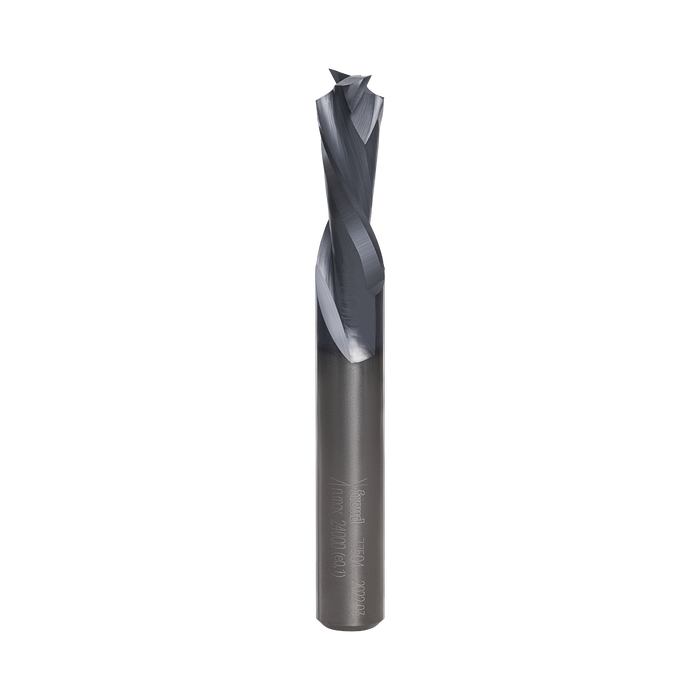

Freud 77-504 3/8" (Dia.) Two Flute Mortise Compression Bit
by Freud
Original price
$97.47
-
Original price
$97.47
Original price
$97.47
$97.47
-
$97.47
Current price
$97.47
✓ In Stock
Pickup
FREE · Ready within 24 hours
Florida Tools Tampa Bay
3120 W Kennedy Blvd
Florida Tools Tampa Bay
3120 W Kennedy Blvd
ShippingShips from Tampa, FL
Shipping calculated at checkout
Shipping calculated at checkout
Mortise Compression Spiral Bits feature a shorter up shear length than other compression spiral bits, making them ideal for grooves and mortises, or for through-cuts in thin double sided material (5/8" thick or less). Rout plywood, melamine and other double-sided materials, as well as hardwood and softwood. For use in CNC, hand-held or table-mounted routers.
Features
- Perfect grooves and mortises in delicate materials
- Routs melamine, veneer plywood, hardwood and softwood
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 77-504 |
| Application | Mortises & Grooves with a perfect top surface |
| Number of Cutters | 2 |
| Max RPM | 24000 |
| Carbide Height (h) | 1" |
| Overall Dia. (D) | 3/8" |
| Overall Length (H) | 3" |
| Shank Dia. (A) | 3/8" |
| Upcut Length | 13/64” |
| Package Dimensions (H x W x D) | 0.7 x 0.8 x 3.85 in |
| Weight | 0.15 lb |
| Country of Origin | Italy |
| UPC | 008925084594 |
Compatible Tools
Hand Router, Table Router, CNC Machine
Recommended Materials
Veneered Plywood, Hardwood, Softwood, Melamine, Laminate, Composites
