Wera 8100 SA VDE 1 Zyklop ratchet set, insulated, reversing lever, 1/4" drive, metric, 22 pieces 05004967001

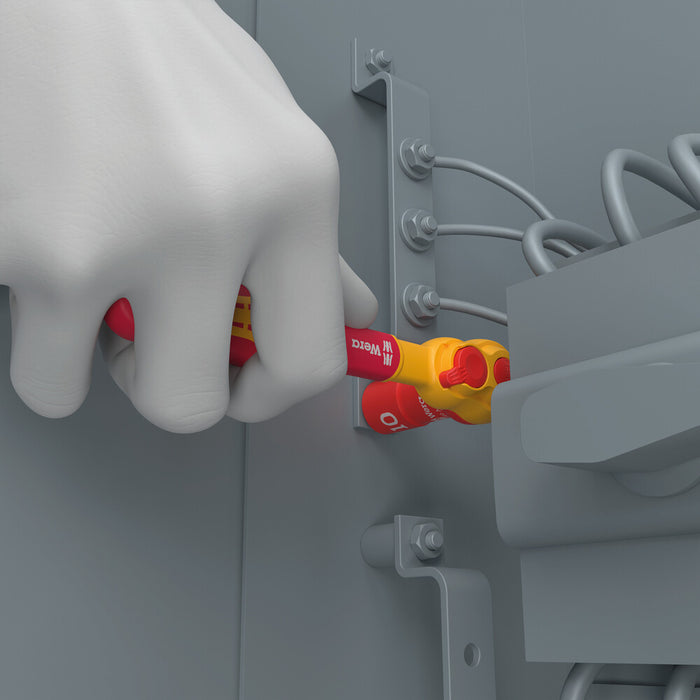

22-piece 1/4" ratchet set; VDE-insulated. For the most common VDE screw connections in electrical building installations. One Zyklop VDE ratchet with reversing lever for easy clockwise/counterclockwise change, fine-toothed (80 teeth, low return angle of only 4.5°); 10 Zyklop VDE sockets, 5 Zyklop VDE bit sockets with holding function for TORX® screws, 4 Zyklop VDE bit sockets with holding function for hexagonal socket screws, one Zyklop VDE extension (150 mm long); all tools individually tested as per IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000 V. One robust textile box, compact design for space-saving tool storage; the firm and light material lowers the weight of the set - ideal for mobile use. Equipped with twist-to-unlock system for easy removal of the tools.

Features & Benefits

• 22-piece 1/4" ratchet set; VDE-insulated
• One Zyklop ratchet, 10 sockets, 5 bit sockets with holding function for TORX® screws, 4 bit sockets with holding function for hexagonal socket screws, one extension (150 mm)
• Individually tested tools as per IEC 60900
• Increased safety thanks to 2-component insulation with a yellow insulation core under an outer red insulation layer
• Compact textile box with twist-to-unlock system: the tools are securely stored, yet easy to remove
• Textile box made of robust material, protects surfaces from damage, can be docked onto the Wera 2go system
• 0
• 0

Details

22-piece set

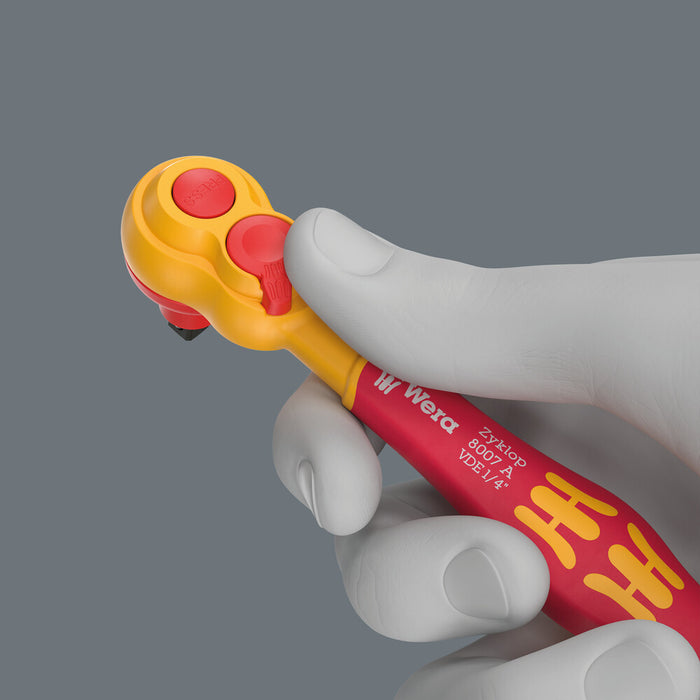

One Zyklop 8007 A VDE ratchet with 1/4" drive and reversing lever for easy clockwise/counterclockwise change; 10 Zyklop VDE sockets, 5 Zyklop VDE bit sockets with holding function for TORX® screws, 4 Zyklop VDE bit sockets with holding function for hexagonal socket screws, one Zyklop VDE extension (150 mm long), all tools insulated and individually tested as per IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000 V. The Zyklop VDE sockets, bit sockets and extensions offer increased safety thanks to 2-component insulation with a yellow insulation core under an outer red insulation layer, which becomes visible if the outer red VDE insulation layer is damaged.

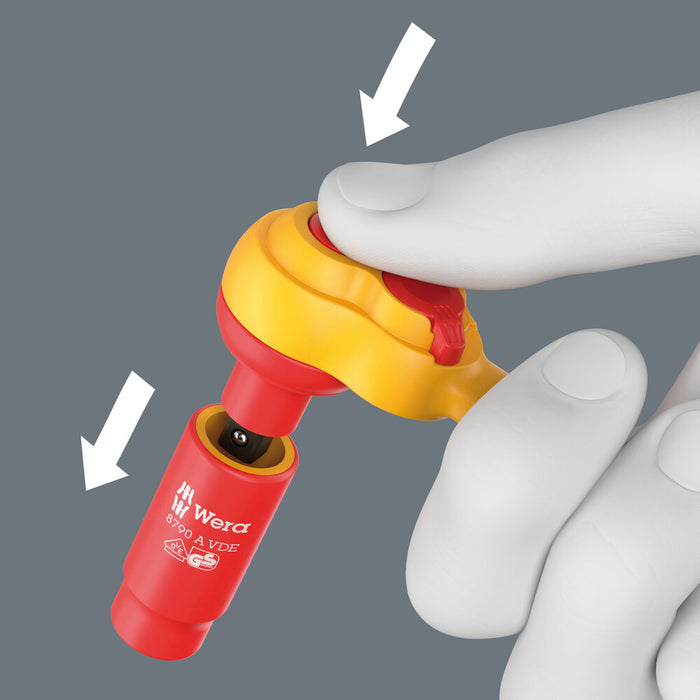

In a surface-friendly, compact and extremely robust textile box. Small size and low weight for better mobility. Fleece back und adhesive hook and loop fastener strip for easy attachment to the wall, shelf, roller cabinets and the Wera 2go tool transport system. Smooth rotary twist-to-unlock mechanism for safe storage and easy access of the ratchet as well as the Zyklop VDE sockets and bit sockets.

What's Included

• 1x 8007 A VDE Zyklop ratchet, insulated, with reversing lever, with 1/4" drive: 1/4" x 144 mm
• 11x 8790 A VDE Zyklop Socket, insulated, with 1/4" drive: 4.5x41 mm, 5x41 mm, 5.5x41 mm, 6x41 mm, 7x41 mm, 8x41 mm, 10x41 mm, 11x41 mm, 12x41 mm, 13x41 mm, 14x41 mm
• 5x 8767 A VDE HF TORX® Zyklop Bit socket, insulated, with 1/4" drive, with holding function: TX 10x46 mm, TX 15x46 mm, TX 20x46 mm, TX 25x46 mm, TX 30x46 mm
• 4x 8740 A VDE HF Zyklop Bit socket, insulated, with 1/4" drive, with holding function for hexagonal socket screws: 3x46 mm, 4x46 mm, 5x46 mm, 6x46 mm
• 1x 8794 LA Zyklop VDE extension, insulated, long, 1/4": 1/4" x 150 mm
• 1x Hook and Loop Fastener Strip 120: 120 x 50 mm
