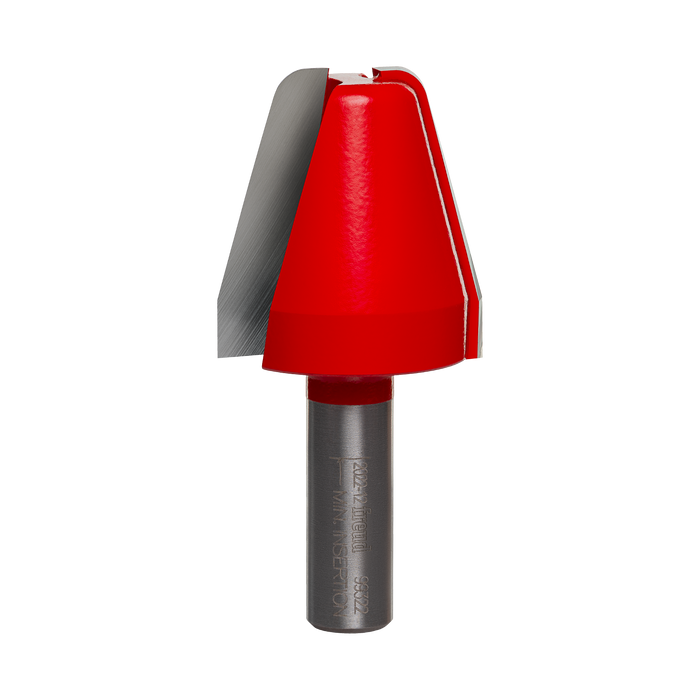

Freud 99-322 1-1/2" (Dia.) Vertical Raised Panel Bit
by Freud
Original price
$74.47
-
Original price
$74.47
Original price
$74.47
$74.47
-
$74.47
Current price
$74.47
Added to your quote list (0 items). View quote & send →
🚚 Special order item – ships in 7–10 business days.
The smaller overall diameter of the Vertical Panel bits make them ideal for lower horsepower routers and single speed routers. Offered in four of the most popular profiles to suit most projects. These bits must be used in table-mounted routers equipped with a sturdy fence. They will rout all hardwood, softwood, plywood and composites.
Features
- Smaller diameter than conventional raised panel bits allow use with lower-horsepower routers
- Cuts all composition materials, plywoods, hardwoods, and softwoods
- Use on table-mounted routers with sturdy fences only
- Freud Perma-SHIELD® Coating
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 99-322 |
| Application | Creates full sized raised panels by feeding 3/4" stock vertically |
| Number of Cutters | 2 |
| Max RPM | 16000 |
| Carbide Height (h) | 1-5/8" |
| Overall Dia. (D) | 1-1/2" |
| Minor Height (m) | 23/64" |
| Overall Length (H) | 3-3/16" |
| Large Radius (R1) | 3/8" |
| Shank Dia. (A) | 1/2" |
| Package Dimensions (H x W x D) | 2.3 x 2.4 x 5.7 in |
| Weight | 0.6 lb |
| Country of Origin | Italy |
| UPC | 008925385066 |
Compatible Tools
Table Router
Recommended Materials
Veneered Plywood, Hardwood, Softwood, Composites
