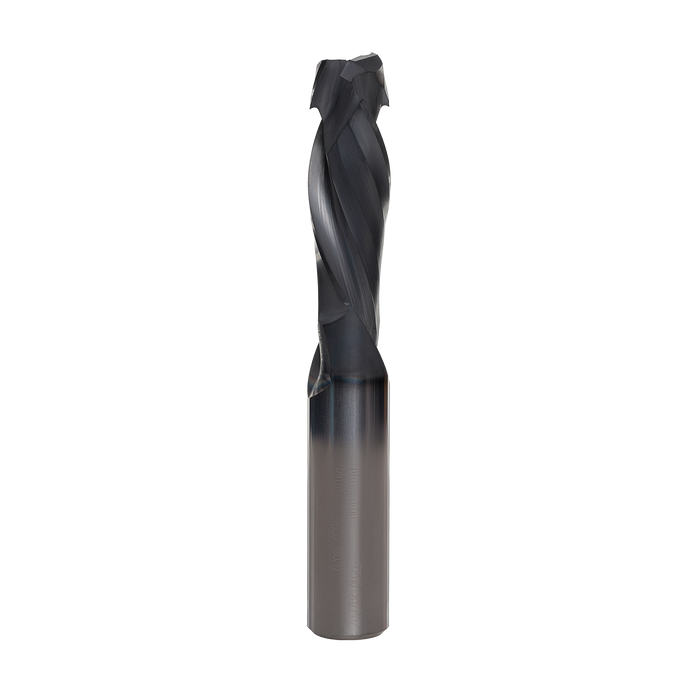

Freud 77-510 1/2" (Dia.) Two Flute Mortise Compression Bit
by Freud
Original price
$109.47
-
Original price
$109.47
Original price
$109.47
$109.47
-
$109.47
Current price
$109.47
Added to your quote list (0 items). View quote & send →
Mortise Compression Spiral Bits feature a shorter up shear length than other compression spiral bits, making them ideal for grooves and mortises, or for through-cuts in thin double sided material (5/8" thick or less). Rout plywood, melamine and other double-sided materials, as well as hardwood and softwood. For use in CNC, hand-held or table-mounted routers.
Features
- Perfect grooves and mortises in delicate materials
- Routs melamine, veneer plywood, hardwood and softwood
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 77-510 |
| Application | Mortises & Grooves with a perfect top surface |
| Number of Cutters | 2 |
| Max RPM | 24000 |
| Carbide Height (h) | 1-3/8" |
| Overall Dia. (D) | 1/2" |
| Overall Length (H) | 3-1/2" |
| Shank Dia. (A) | 1/2" |
| Upcut Length | 5/16” |
| Package Dimensions (H x W x D) | 0.9 x 1 x 4.35 in |
| Weight | 0.28 lb |
| Country of Origin | United States |
| UPC | 008925059875 |
Compatible Tools
Hand Router, Table Router, CNC Machine
Recommended Materials
Veneered Plywood, Hardwood, Softwood, Melamine, Laminate, Composites
