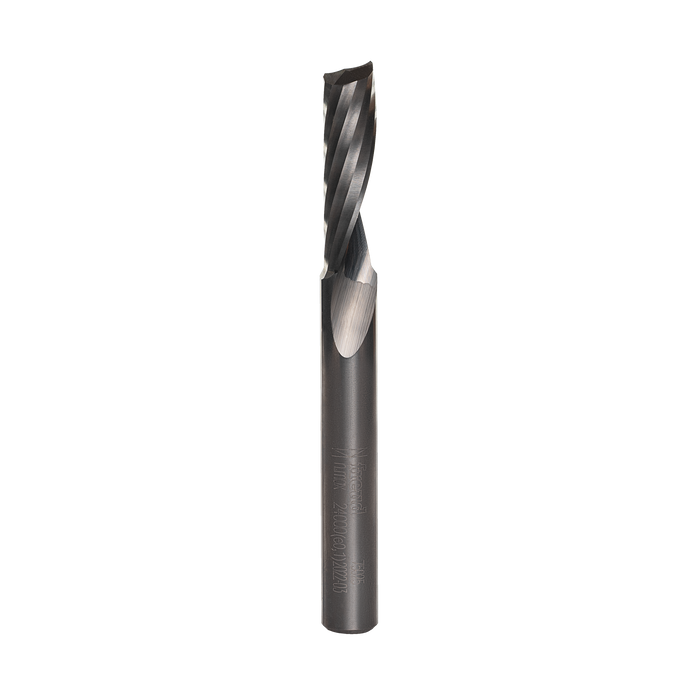

Freud 75-025 1/4" (Dia.) O-Flute Up Spiral Bit
by Freud
Original price
$72.47
-
Original price
$72.47
Original price
$72.47
$72.47
-
$72.47
Current price
$72.47
Added to your quote list (0 items). View quote & send →
Freud O-Flute bits are designed for smooth finishes on solid surface and plastics such as ABS, UHMW, acrylic, nylon and polycarbonate. The up shear design provides fast chip clearance, and delivers the best cut quality on the bottom surface. The O-Flute design delivers cooler cuts in plastic to avoid melting. Use these bits in any CNC, hand-held or table-mounted router. Also a good choice for fine wood cuts. Always make multiple passes for deep cuts in hard materials. Specialty designed for Soft Plastic Material (UHMW, ABS, PC, PS, PP, PET, HDPE, HIPS)
Features
- Smooth cuts in solid surface and plastics
- Up Shear design clears chips fast, delivers cleanest cut on bottom surface
- O-Flute design cuts cooler, avoids melting
- Use in CNC, hand-held and table-mounted routers
- Freud Premier Solid Carbide
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 75-025 |
| Application | Clean, melt-free cuts in a wide variety of plastics with fast chip clearance |
| Number of Cutters | 1 |
| Max RPM | 24000 |
| Carbide Height (h) | 7/8" |
| Overall Dia. (D) | 1/4" |
| Overall Length (H) | 2-1/2" |
| Shank Dia. (A) | 1/4" |
| Package Dimensions (H x W x D) | 0.75 x 0.85 x 3.8 in |
| Weight | 0.06 lb |
| Country of Origin | Italy |
| UPC | 008925107866 |
Compatible Tools
Hand Router, Table Router, CNC Machine, Palm Router
Recommended Materials
Solid Surface, Plastics
