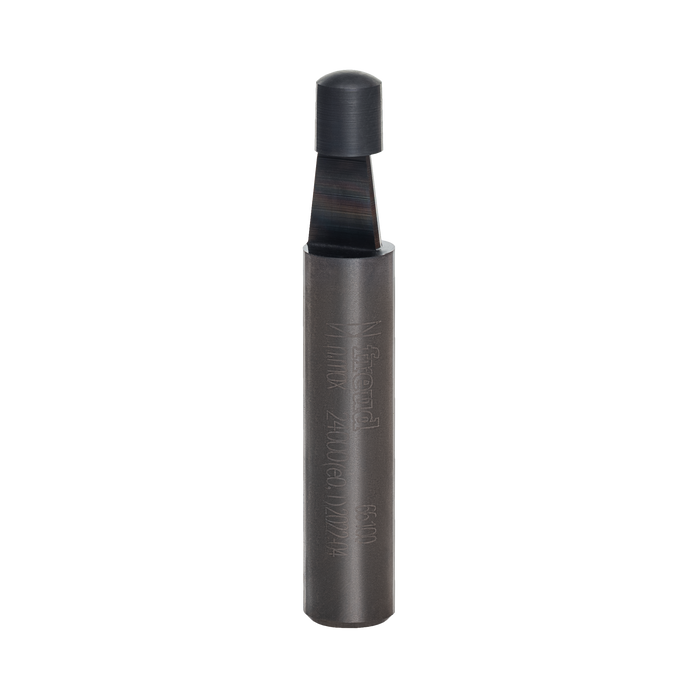

Freud 66-100 1/4" (Dia.) Bevel Trim Bit
by Freud
Original price
$13.47
-
Original price
$13.47
Original price
$13.47
$13.47
-
$13.47
Current price
$13.47
Added to your quote list (0 items). View quote & send →
Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.
Features
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 66-100 |
| Application | Routing a clean, finished edge on plastic laminates |
| Number of Cutters | 2 |
| Max RPM | 24000 |
| Angle (d) | 7° |
| Bearing Dia. (B) | 3/16" |
| Carbide Height (h) | 1/4" |
| Overall Dia. (D) | 1/4" |
| Overall Length (H) | 1-1/2" |
| Shank Dia. (A) | 1/4" |
| Package Dimensions (H x W x D) | 1.65 x 1.65 x 4.9 in |
| Weight | 0.11 lb |
| Country of Origin | Italy |
| UPC | 008925381280 |
Compatible Tools
Hand Router, Table Router, Palm Router
Recommended Materials
Laminate
