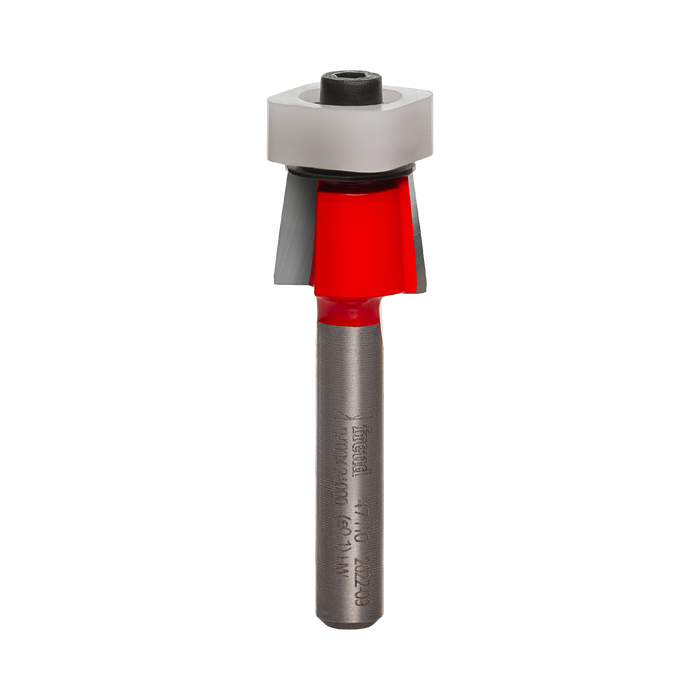

Freud 47-110 9/16" (Dia.) Bevel Trim Bit
by Freud
Original price
$46.47
-
Original price
$46.47
Original price
$46.47
$46.47
-
$46.47
Current price
$46.47
Added to your quote list (0 items). View quote & send →
Bevel Trim Bits produce a clean, finished edge on plastic laminates with little or no filing. Choose among bevel angles from 8 degrees to 45 degrees in the 41-series bits, which also include a ball bearing guide. Or choose the solid carbide 66-100 for a 7 degree bevel in a very cost effective tool.
Features
- Rout a clean, smooth edge of laminates with little of no time-consuming filing
- Cuts all plastic laminates
- 41-Series includes ball bearing guide, 66-100 is cost-effective solid carbide
- Use in hand-held or table-mounted routers and laminate trimmers
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 47-110 |
| Application | Routing a clean, finished edge on plastic laminates |
| Number of Cutters | 2 |
| Max RPM | 24000 |
| Angle (d) | 8° |
| Bearing Dia. (B) | 1/2" |
| Carbide Height (h) | 13/32" |
| Overall Dia. (D) | 9/16" |
| Overall Length (H) | 2" |
| Shank Dia. (A) | 1/4" |
| Package Dimensions (H x W x D) | 1.5 x 1.5 x 4.8 in |
| Weight | 0.15 lb |
| Country of Origin | Italy |
| UPC | 008925165224 |
Compatible Tools
Hand Router, Table Router, Palm Router
Recommended Materials
Laminate, Melamine
