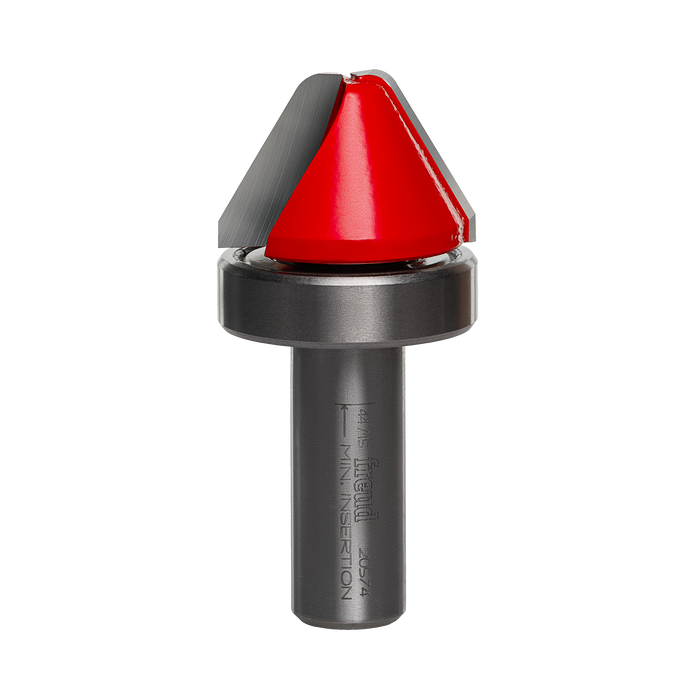

Freud 20-574 1-1/8" (Dia.) Lettering Bit
by Freud
Original price
$50.97
-
Original price
$50.97
Original price
$50.97
$50.97
-
$50.97
Current price
$50.97
Added to your quote list (0 items). View quote & send →
🚚 Special order item – ships in 7–10 business days.
Ideal for creating letters for signs, these bits produce a 60° angle for highly readable relief lettering. The flattened end removes excess material between letters quickly. Routs hardwood, softwood, plywood and composite materials with CNC, hand-held or table-mounted routers.
Features
- Produce a 60° angle for highly readable relief lettering
- Routs hardwood, softwood, plywood and composite materials
- Use on CNC, hand-held or table-mounted routers
- Freud Perma-SHIELD® Coating
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 20-574 |
| Application | Creating relief sign lettering |
| Number of Cutters | 2 |
| Max RPM | 18000 |
| Bearing Dia. (B) | 1-1/8" |
| Carbide Height (h) | 3/4" |
| Overall Dia. (D) | 1-1/8" |
| Overall Length (H) | 2-13/32" |
| Radius (R) | 1/8" |
| Shank Dia. (A) | 1/2" |
| Package Dimensions (H x W x D) | 1.5 x 2 x 4.4 in |
| Weight | 0.26 lb |
| Country of Origin | Italy |
| UPC | 008925019442 |
Compatible Tools
Hand Router, Table Router
Recommended Materials
Hardwood, Softwood, Plywood, MDF, Veneered Plywood, Plastic
