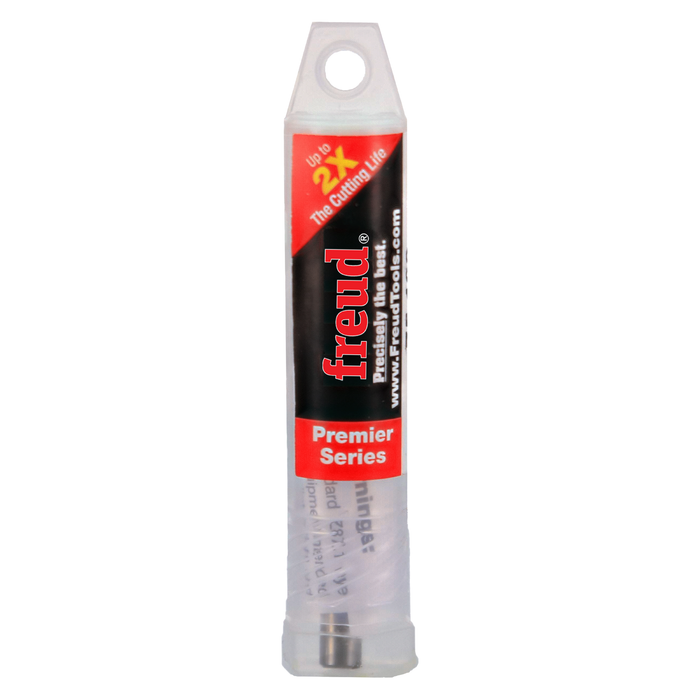

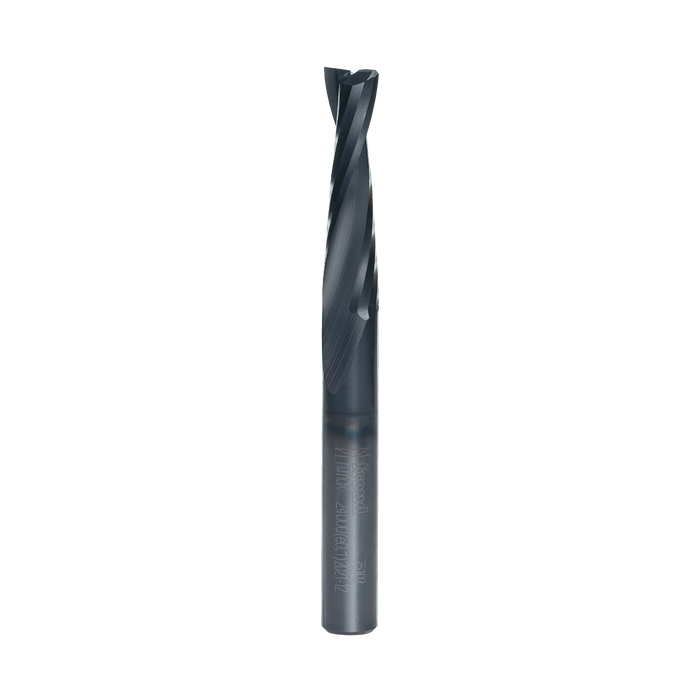

Freud 75-102 1/4" (Dia.) Up Spiral Bit
by Freud
Original price
$32.47
-
Original price
$32.47
Original price
$32.47
$32.47
-
$32.47
Current price
$32.47
Added to your quote list (0 items). View quote & send →
Solid carbide up spiral bits combine effective chip removal with a cut quality that can’t be matched by standard straight bits. Ideal for through-cuts, mortises and deep blind holes in production applications. The up spiral design provides the best cut quality on the bottom surface of the material. Use these bits in CNC, hand-held or table-mounted routers.
Features
- Fast chip removal with excellent quality and long life
- Use in CNC, hand-held and table-mounted routers
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo™ Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 75-102 |
| Application | Cutting parts, grooves and deep holes in wood, plywood and composites |
| Number of Cutters | 2 |
| Max RPM | 24000 |
| Carbide Height (h) | 1" |
| Overall Dia. (D) | 1/4" |
| Overall Length (H) | 2-1/2" |
| Shank Dia. (A) | 1/4" |
| Package Dimensions (H x W x D) | 0.7 x 0.8 x 3.8 in |
| Weight | 0.06 lb |
| Country of Origin | United States |
| UPC | 008925390022 |
Compatible Tools
Hand Router, Table Router, CNC Machine, Palm Router
Recommended Materials
Veneered Plywood, Hardwood, Softwood, Melamine, Laminate, Composites
