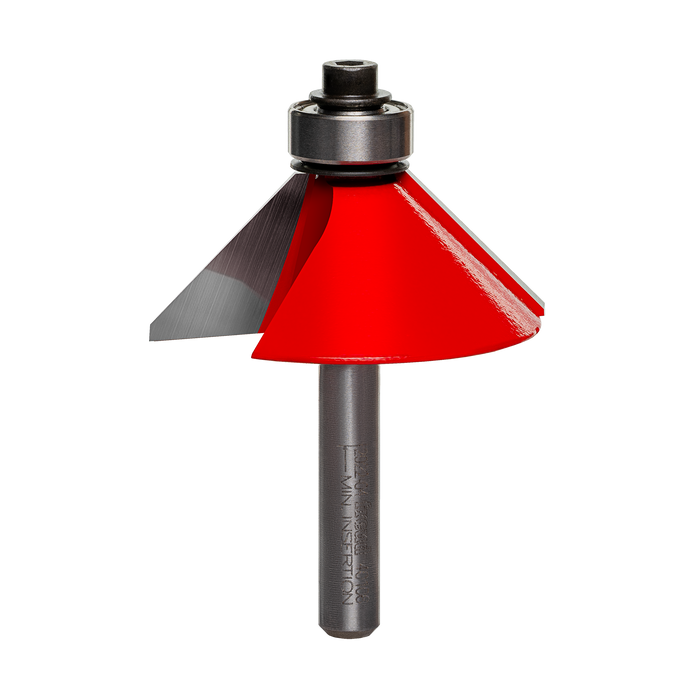

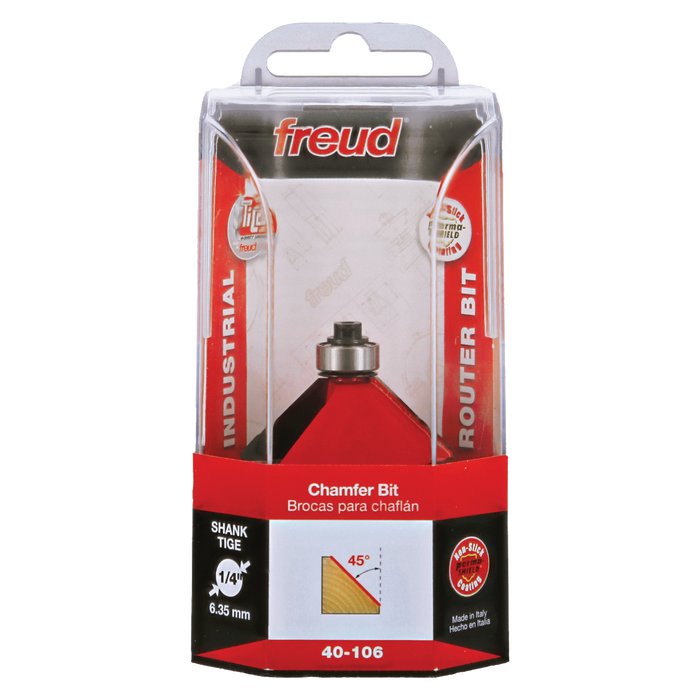

Freud 40-106 1-3/4" (Dia.) Chamfer Bit
by Freud
Original price
$45.47
-
Original price
$45.47
Original price
$45.47
$45.47
-
$45.47
Current price
$45.47
Added to your quote list (0 items). View quote & send →
The chamfer profile seems simple, but it is a great solution for lots of multiple-sided projects, joinery, and easing edges. Creates a uniform chamfer on the edge of any work piece to add character, while retaining crisp geometric lines. #40-094 makes 16-sided pieces and #40-098 makes 12-sided pieces. Routs hardwood, softwood, plywood and composites; use in hand-held or table-mounted portable routers.
Features
- Chamfer size easily adjusts by changing the height of the bit or moving the fence
- Cuts all composition materials, plywood, hardwood, and softwood
- Use on hand-held and table-mounted routers
- Freud Perma-SHIELD® Coating
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 40-106 |
| Application | For multiple-sided projects, joinery, and easing edges |
| Number of Cutters | 2 |
| Max RPM | 16000 |
| Angle (d) | 45° |
| Bearing Dia. (B) | 1/2" |
| Carbide Height (h) | 5/8" |
| Overall Dia. (D) | 1-3/4" |
| Overall Length (H) | 2-3/16" |
| Shank Dia. (A) | 1/4" |
| Package Dimensions (H x W x D) | 2.1 x 2.4 x 4.8 in |
| Weight | 0.29 lb |
| Country of Origin | Italy |
| UPC | 008925380955 |
Compatible Tools
Hand Router, Table Router, Palm Router
Recommended Materials
Hardwood, Softwood, Plywood, MDF, Laminate, Plastic
