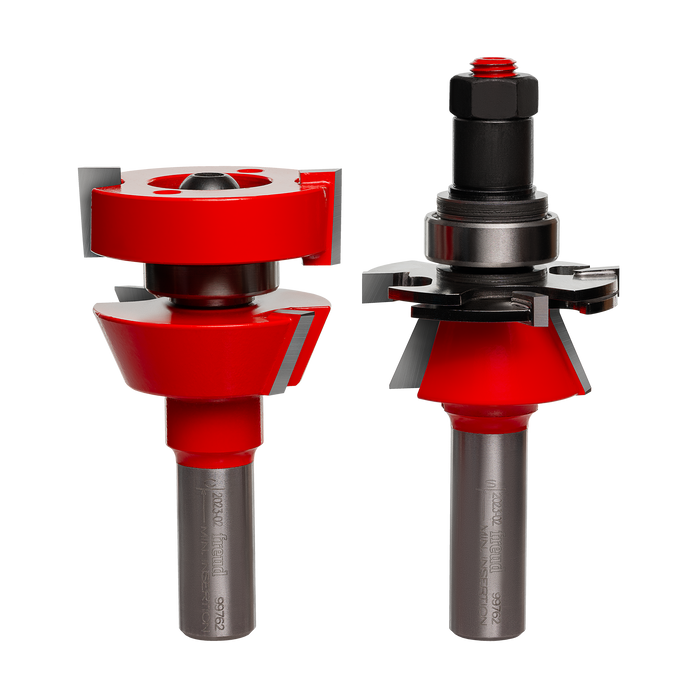

Freud 99-762 1-11/16" (Dia.) Premier Adjustable Rail & Stile Bit - Shaker
Added to your quote list (0 items). View quote & send →
Freud's unique Premier Adjustable Rail and Stile System builds perfect doors in material from 5/8" to 1-1/4" thick, and also features Freud's patented technology for producing extra-strong long tenon joints. The System also includes adjustable shims to adjust the panel groove from 7/32"(5.5mm) for thinner plywood panels to 3/8" (9.5mm) thick for larger solid wood raised panels. Offered in five different profiles to suit any project! For even more versatility, add optional cutters to produce double-sided doors, or the optional cutter for glass and screen door construction. Use in table-mounted routers to mill and hardwood or softwood.
Features
- Build rail and stile doors with your choice of five different profiles with thickness from 5/8" to 1-1/4"
- Patented Extended Tenon Capability for milling extra-strong long tenon joints
- Unique cutter geometry to eliminate tearout
- TiCo™ Hi-Density Carbide to maximize bit life and material finish
- Freud Perma-SHIELD® Coating
Specifications
| Brand | Freud |
|---|---|
| Model / Item # | 99-762 |
| Application | Produces perfect fitting rail and stile doors from 5/8" to 1-1/4" stock |
| Max RPM | 16000 |
| Overall Dia. (D) | 1-11/16" |
| Overall Length (H) | 3-3/4" |
| Shank Dia. (A) | 1/2" |
| Package Dimensions (H x W x D) | 4 x 4.6 x 5.5 in |
| Weight | 1.46 lb |
| Country of Origin | Italy |
| UPC | 008925091615 |
Compatible Tools
Table Router
Recommended Materials
Veneered Plywood, Hardwood, Softwood
