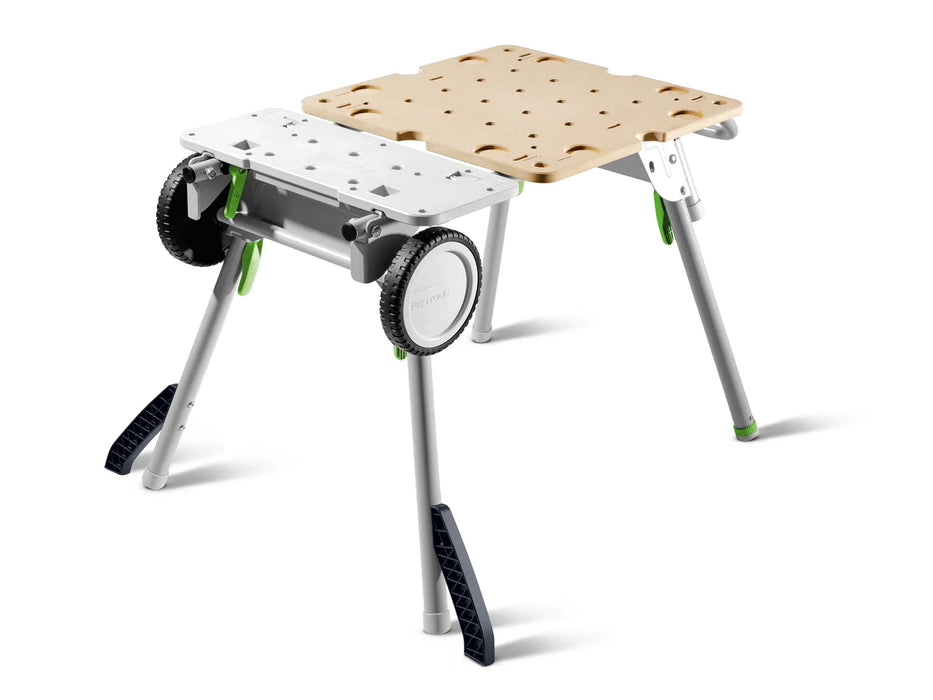

Festool Underframe UG UG-CSC-SYS 577001

In its role as a hand cart, it effortlessly transports not just the CSC SYS 50 cordless table saw but also all your Systainers to the point of use. This saves time and helps you work in a professional manner. Folded together, it takes up barely any space in the vehicle – so you always have this clever assistant on board!

A work space is available to you when you need it; quickly set up thanks to convenient foldaway legs. materials can be securely clamped onto it using a perforated top and clamps. The UG-CSC-SYS underframe is an ideal alternative to sawhorses on the site.

Highlights

Rugged wheels
Rugged wheels are designed for a load of up to 176 lbs (80 kg).

Secure transport
Systainers engage securely in the base plate. They can also be secured with a lashing strap.

A firm grip
The handle for manuevering is accessible at any time due to its clever shape. If the underframe is set up as a worktable, it is located underneath the work space and is never in the way.

Convenient foldaway legs
Tool-free leg deployment; unevenness in the floor is easily compensated for by the adjustable foot.

Large work space
Simply turn the base plate – and you already have a work space of nearly 23" square (58 x 58 cm). Working height: 26-3/4" (68 cm).

Robust
The worktable is designed for up to 220 lbs (100 kg).

Always clean
Protective feet that can be folded out protect the work space when the underframe is being used as a hand cart. This helps to prevent damage to the work top surface.

Secure
The hole pattern of the work top allows secure clamping of materials with Festool screw clamps or lever clamps.

Ergonomic working height
The CSC SYS 50 cordless table saw has a convenient and ergonomic working height.

Features & Benefits

• Versatile: Handtruck, worktable, and underframe support for the CSC SYS 50 cordless table saw - all in one
• Tough: Transport a Systainer tower up to 176 lbs (80 kg). The Systainers engage securely on the base plate. Secure with a lashing strap
• Saves space: Folded together, the underframe takes up barely any space in a vehicle
• Practical: The foldaway legs can be deployed instantly. Unevenness in the floor is compensated for by an adjustable foot on one of the foldaway legs
• Stable support: The typical Festool hole pattern of the worktop allows secure clamping of materials with screw clamp and lever clamps
• A perfect fit: The ideal combination with the CSC SYS 50 cordless table saw. Creates an ergonomic working height, while also providing stable support for long materials. The legs remain folded in when working close to the ground (working height 9-21/32" (24.5 cm)

Specifications
